Vacuum Table Assembly
Watch the video below to learn how to assemble a Black Box Vacuum solutions vacuum table kit on one of our RTR Series routers.
- Cut list used for a 4 section vacuum table on an RTR-84
-
This setup uses the vacuum pump mounting kit, this kit is not needed to use the vacuum pump but it makes it so you can mount
the vacuum pump to the table instead of sitting the pump on the floor. The pump is designed to be able to run sitting on the floor
and does not need to be attached to the table but attaching it to the table allowed us to be able to move the table as an assembly
with a forklift in the future if needed. If you do not use the vacuum pump mounting kit, adjust the lengths of the cuts of your pvc
tubes accordingly.
Note: We recommended that base table board be 3/4 Baltic birch and the spoil board be 3/4 mdf.
-
Vacuum tube kit
- (5) - 4'' - 3" tube
- (1) - 13'' - 3" tube
- (1) - 9'' - 3" tube
- (1) - 12'' - 3" tube
- (1) - 17.5'' - 3" tube
- (8) - 2'' - 2" tube
- (4) - 1.75'' - 2" tube
- (1) - 15'' 1/8 - 2" tube
- (1) - 18'' 7/8 - 2" tube
- (1) - 30'' 3/4 - 2" tube
- (1) - 45'' - 2" tube

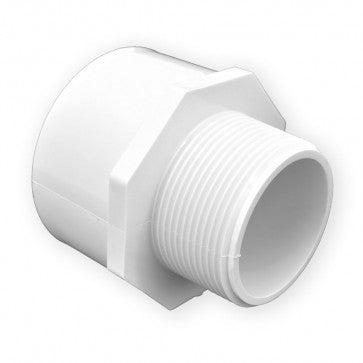

Adapters - (1)- 2.5" male to 3" female fittings pipe thread (The Huricane filter comes with 2 but I used an additonal one)

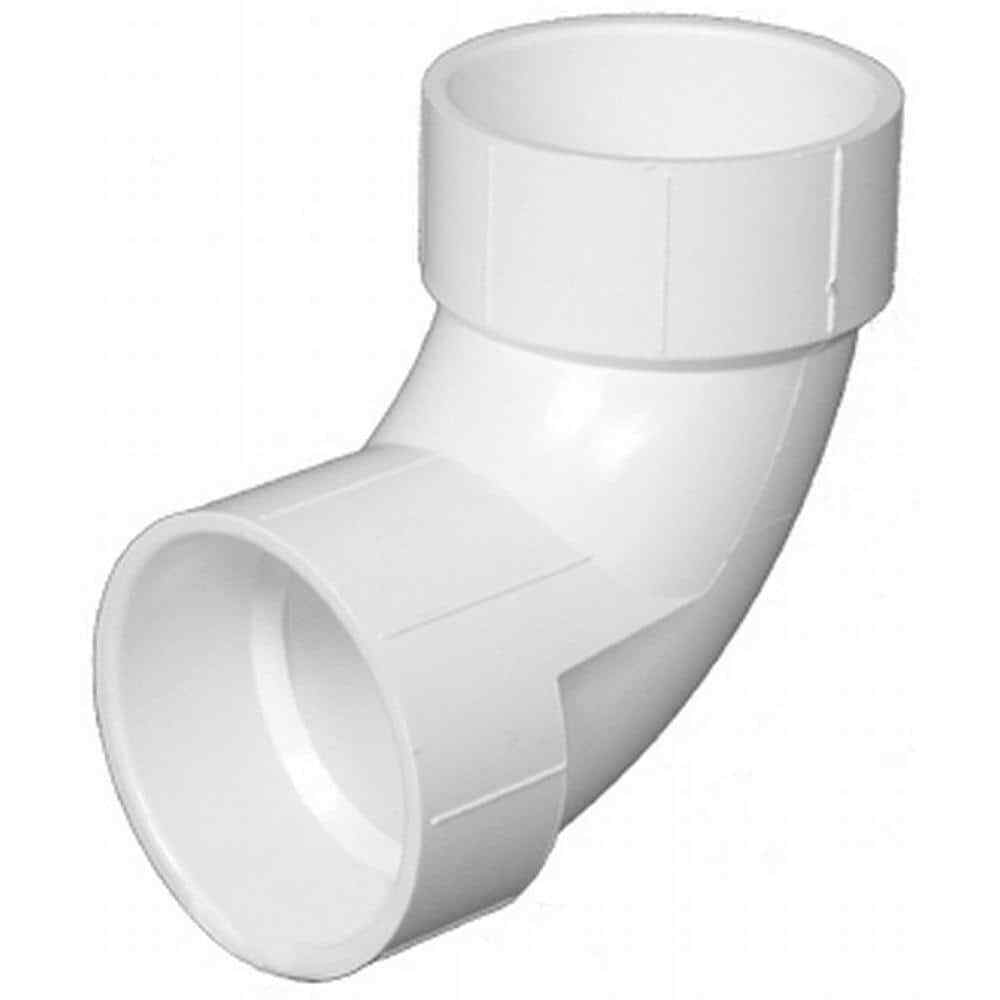

- (3) 3" 90 degree tube bends

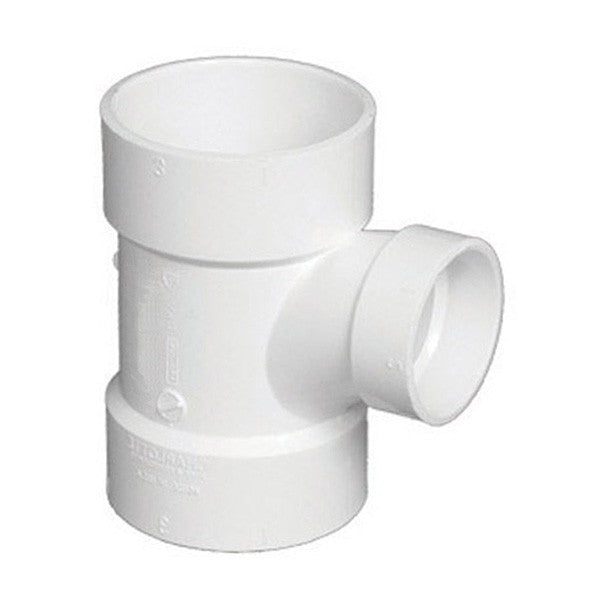

- (4) 3'' straight with 2 inch T fittings
- (8) 90 degree 2" tube bends
- (4) drain valves with 2 inch female openings.
Vacuum pump to manifold guide (Amount used) - Tube length - Tube diameter
