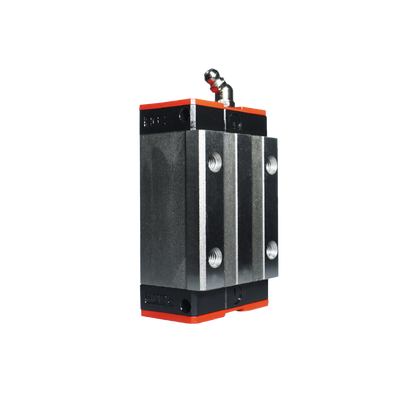

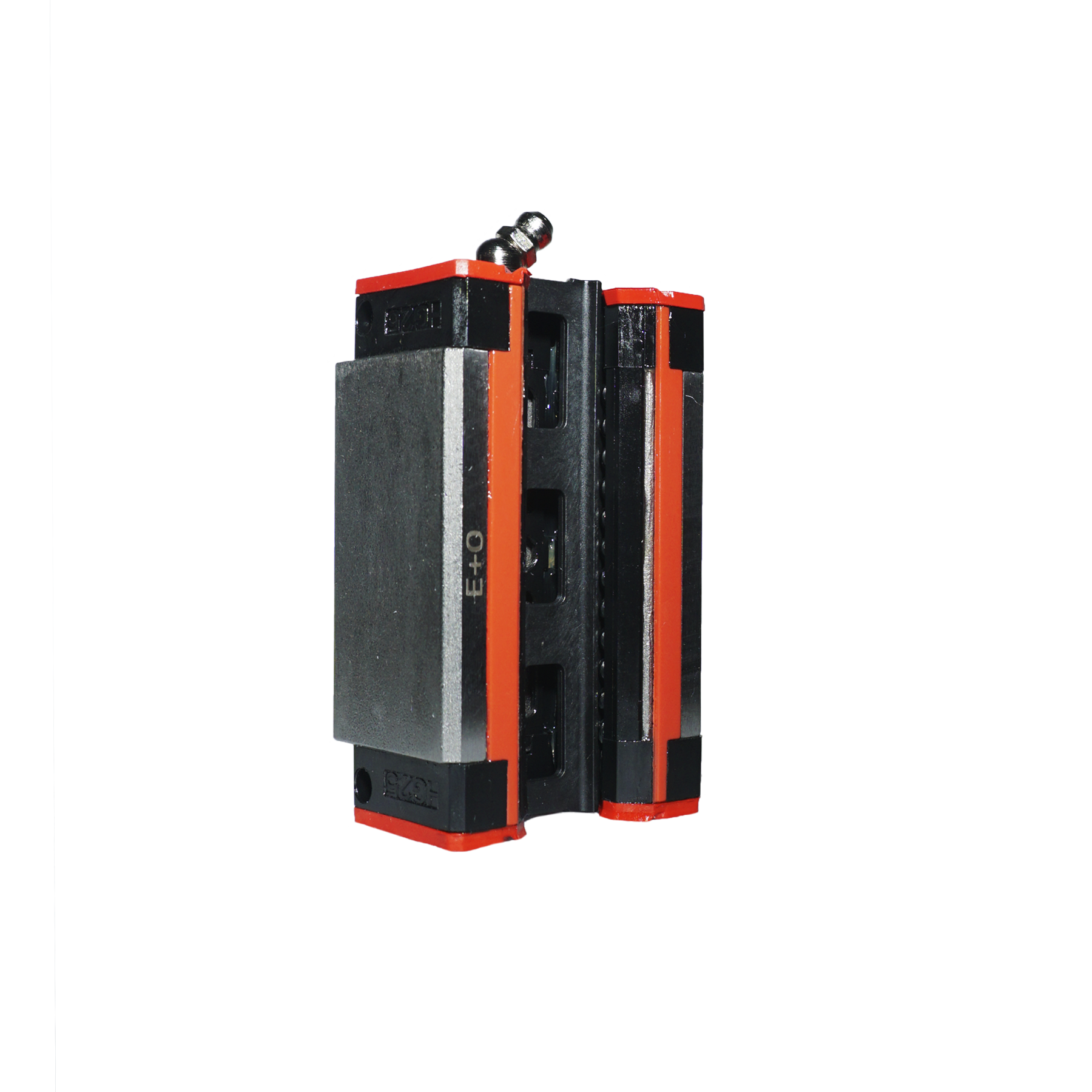

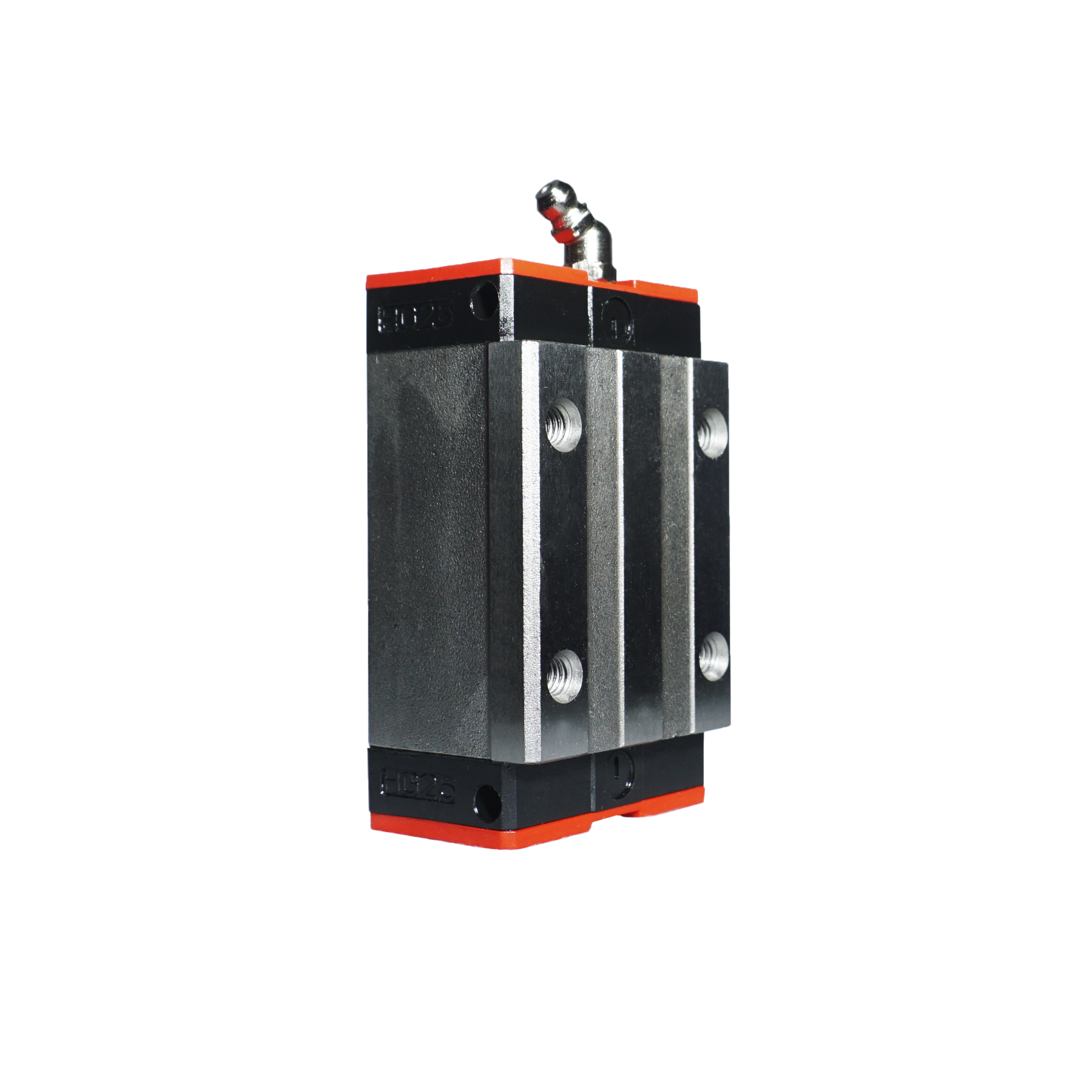

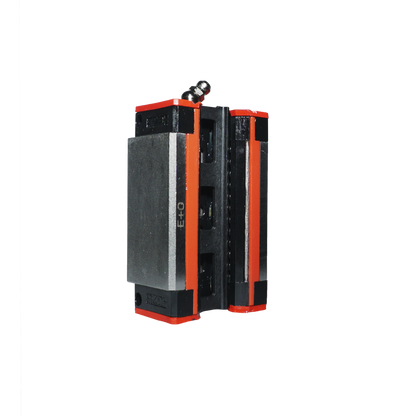

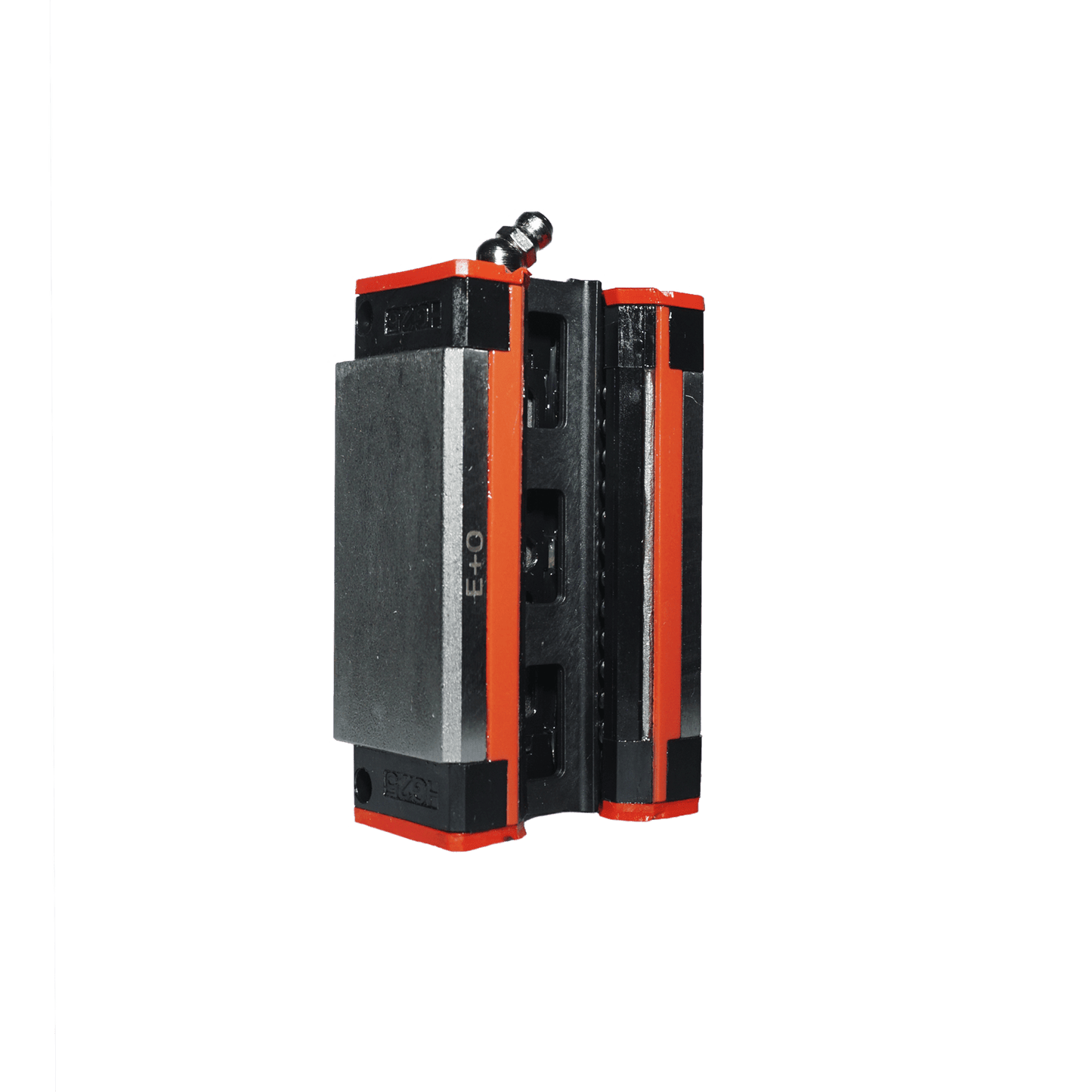

Bearing Blocks

Linear guide rail bearing block for linear motion systems are designed with load capacity and rigidity with circular-arc groove and structure optimization. Features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation error.

• Size: 25 mm
• Load Type: Heavy Load
• Block Height: 40 mm
• Block Width: 48 mm
• Block Length: 84 mm
• Thread Size: M6 x20
• Basic dynamic load rating: 34.9 kN
• Basic static load rating: 52.82 kN
• Block Weight: 0.51 kg
• Rail Width: 23 mm
• Rail Height: 22 mm
