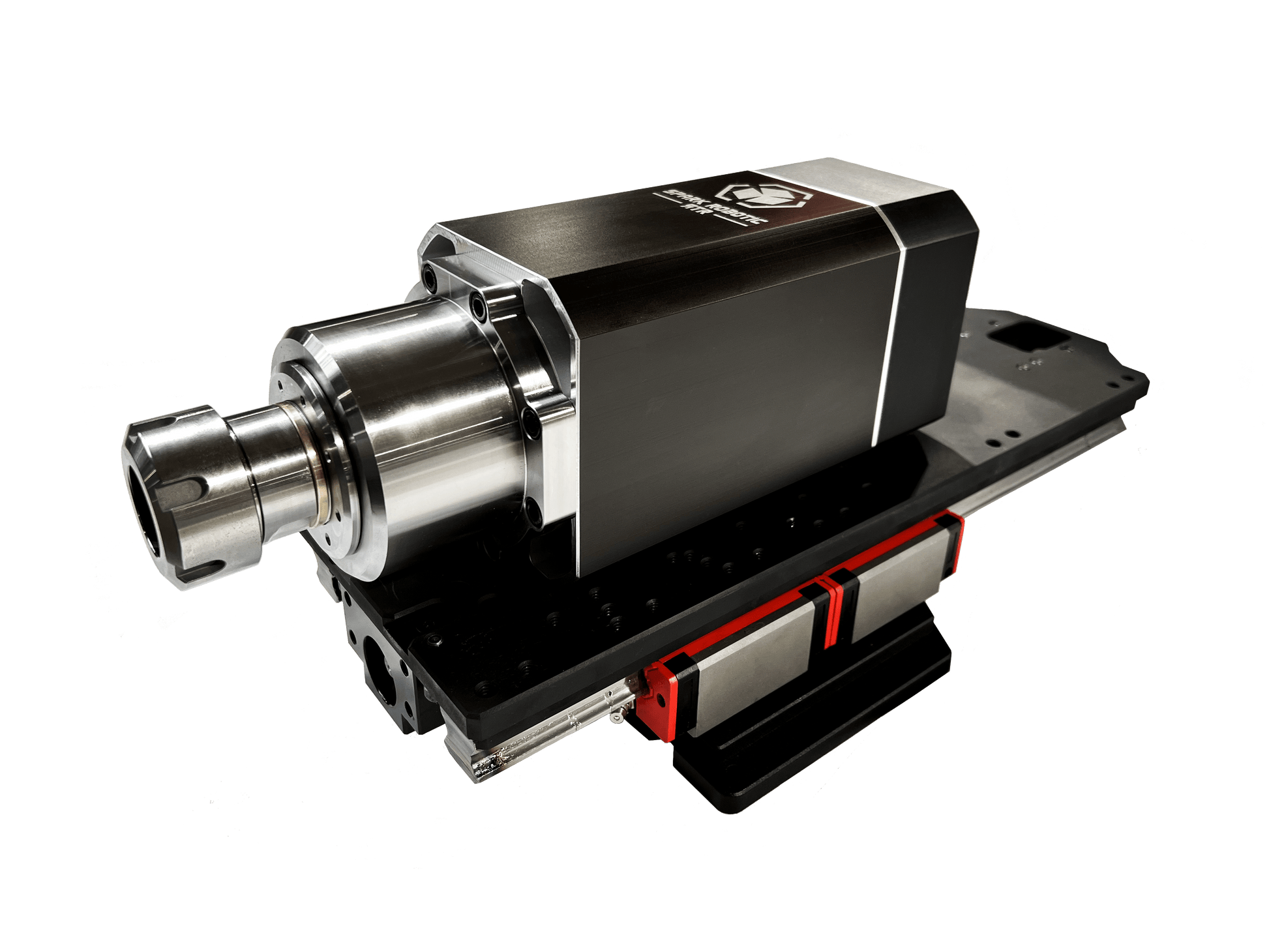

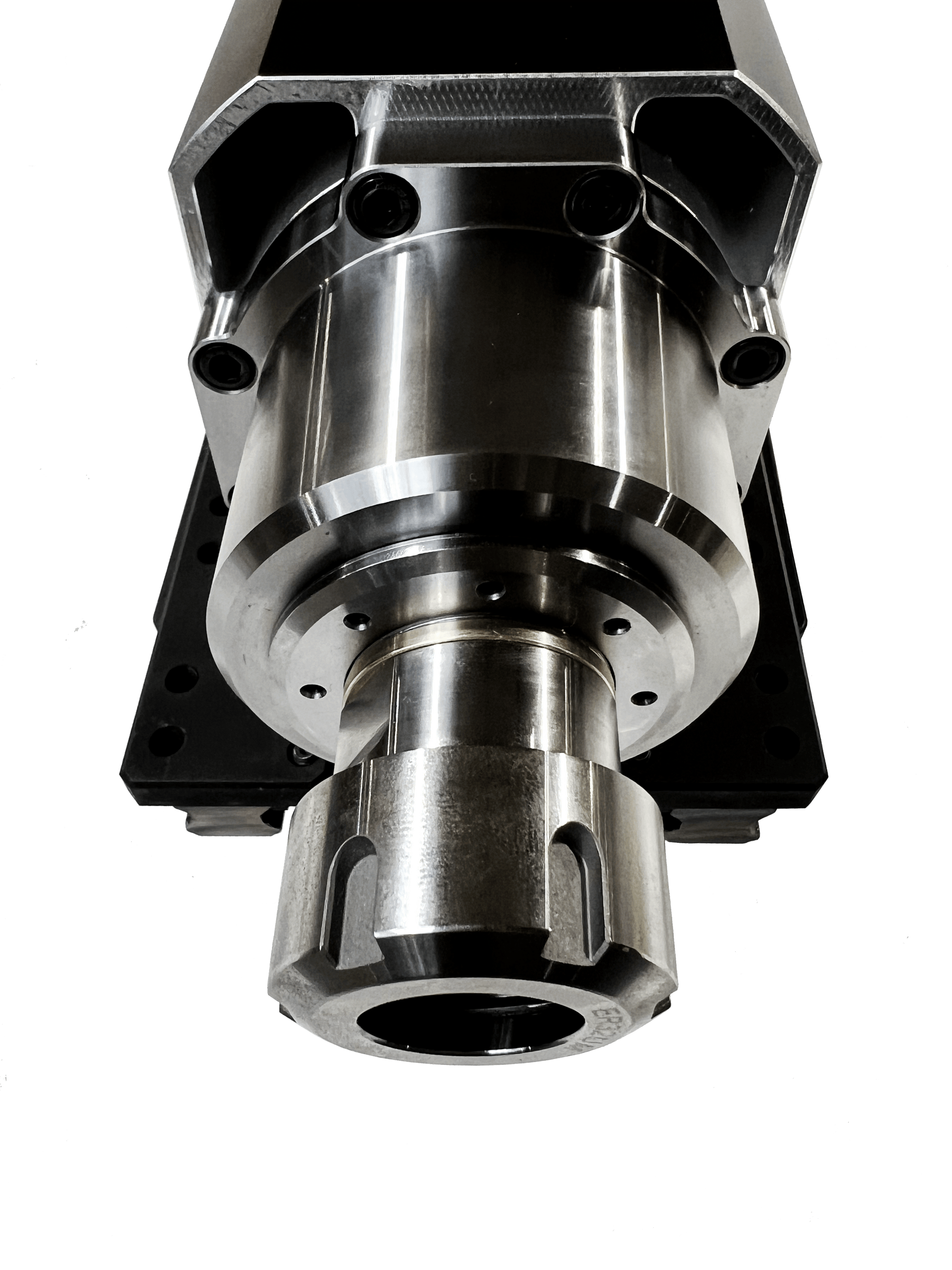

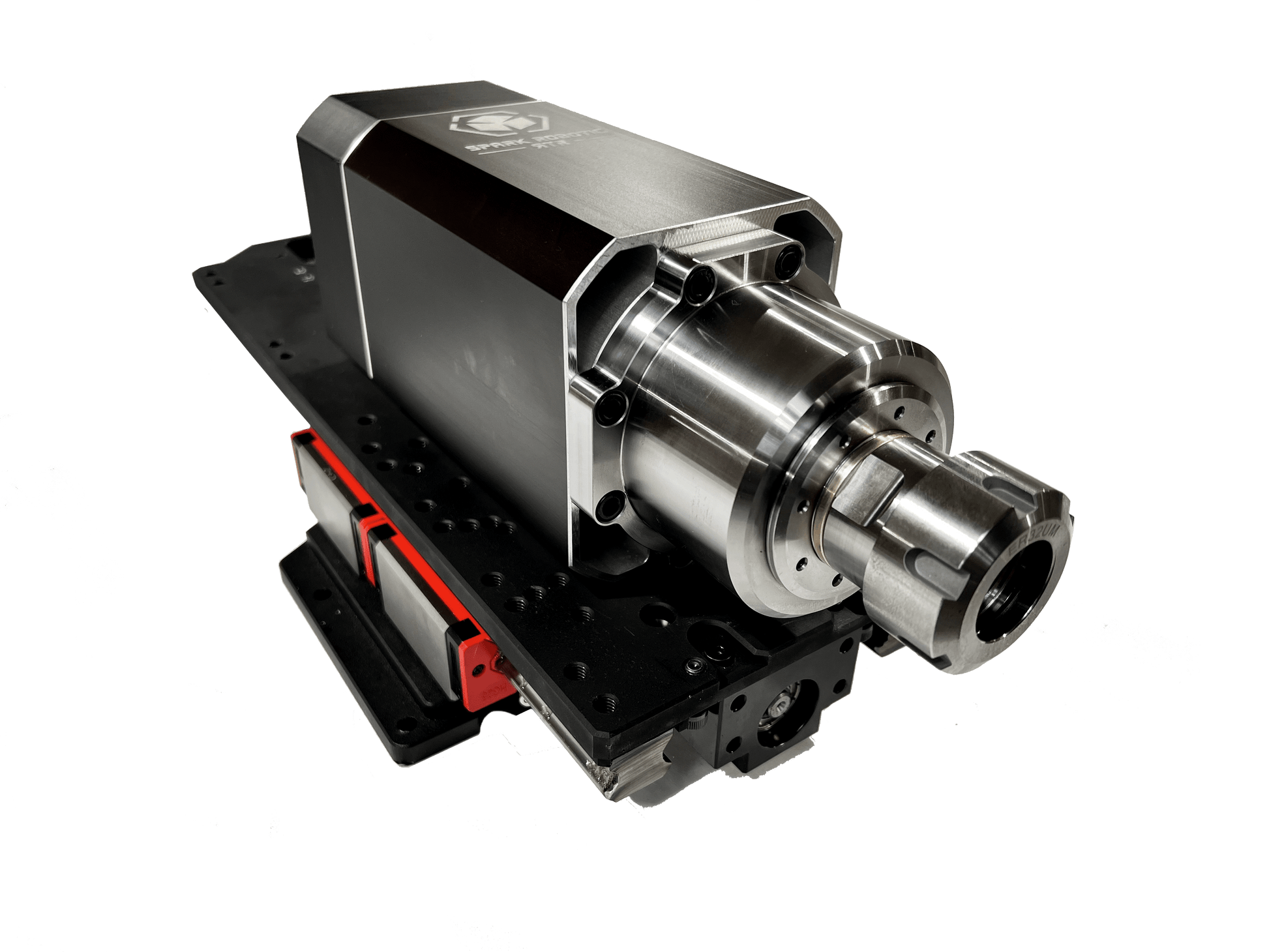

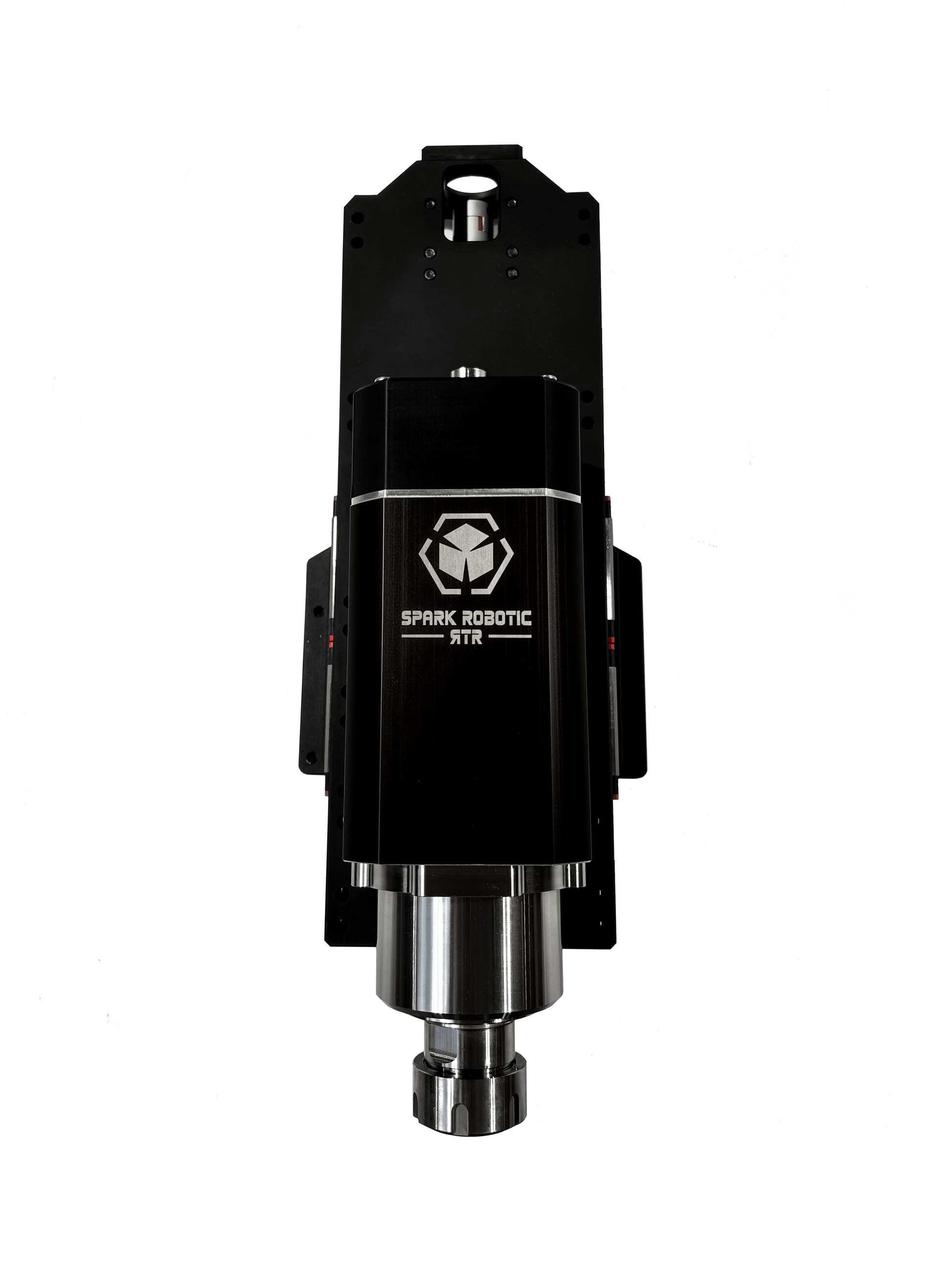

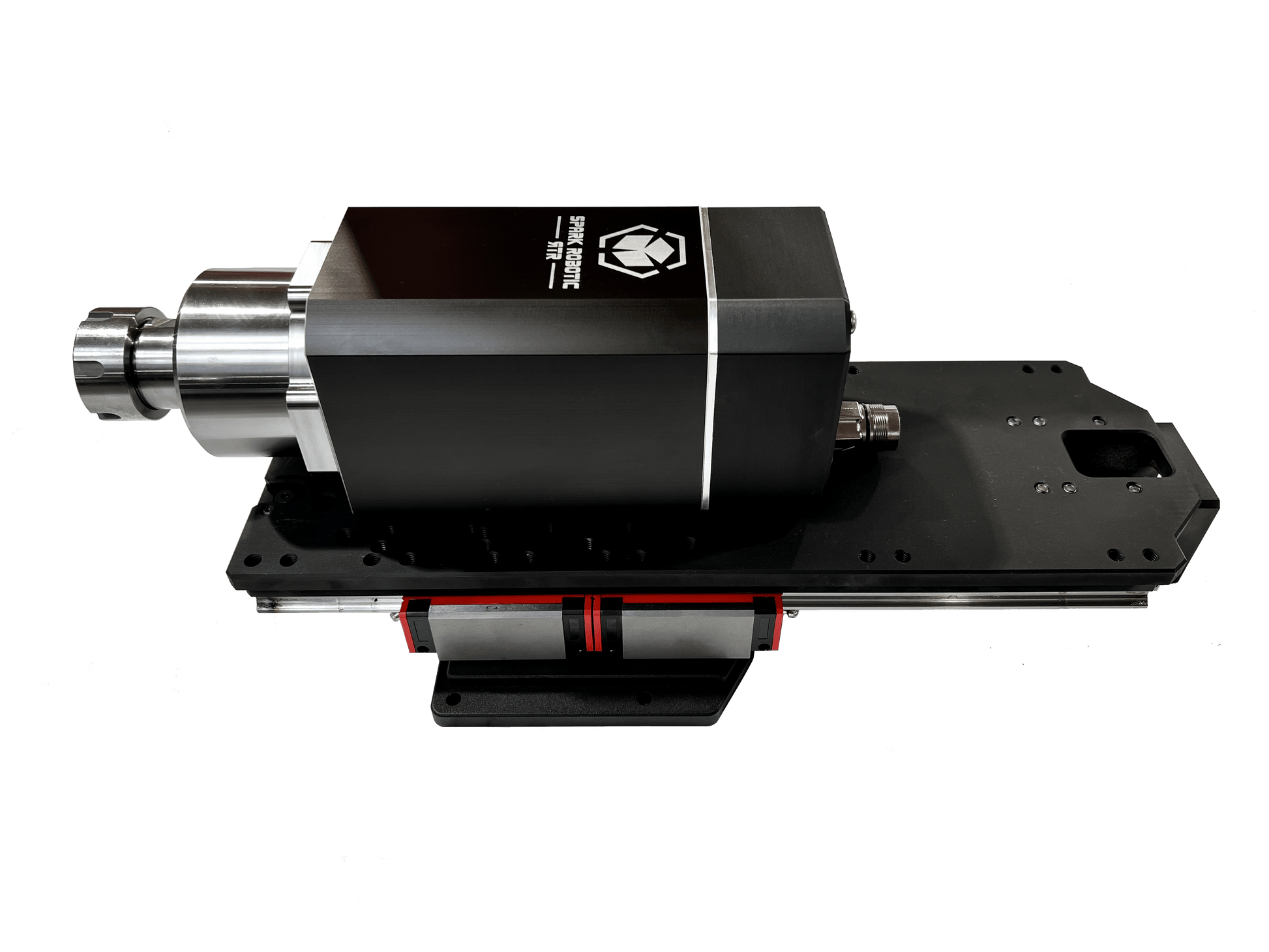

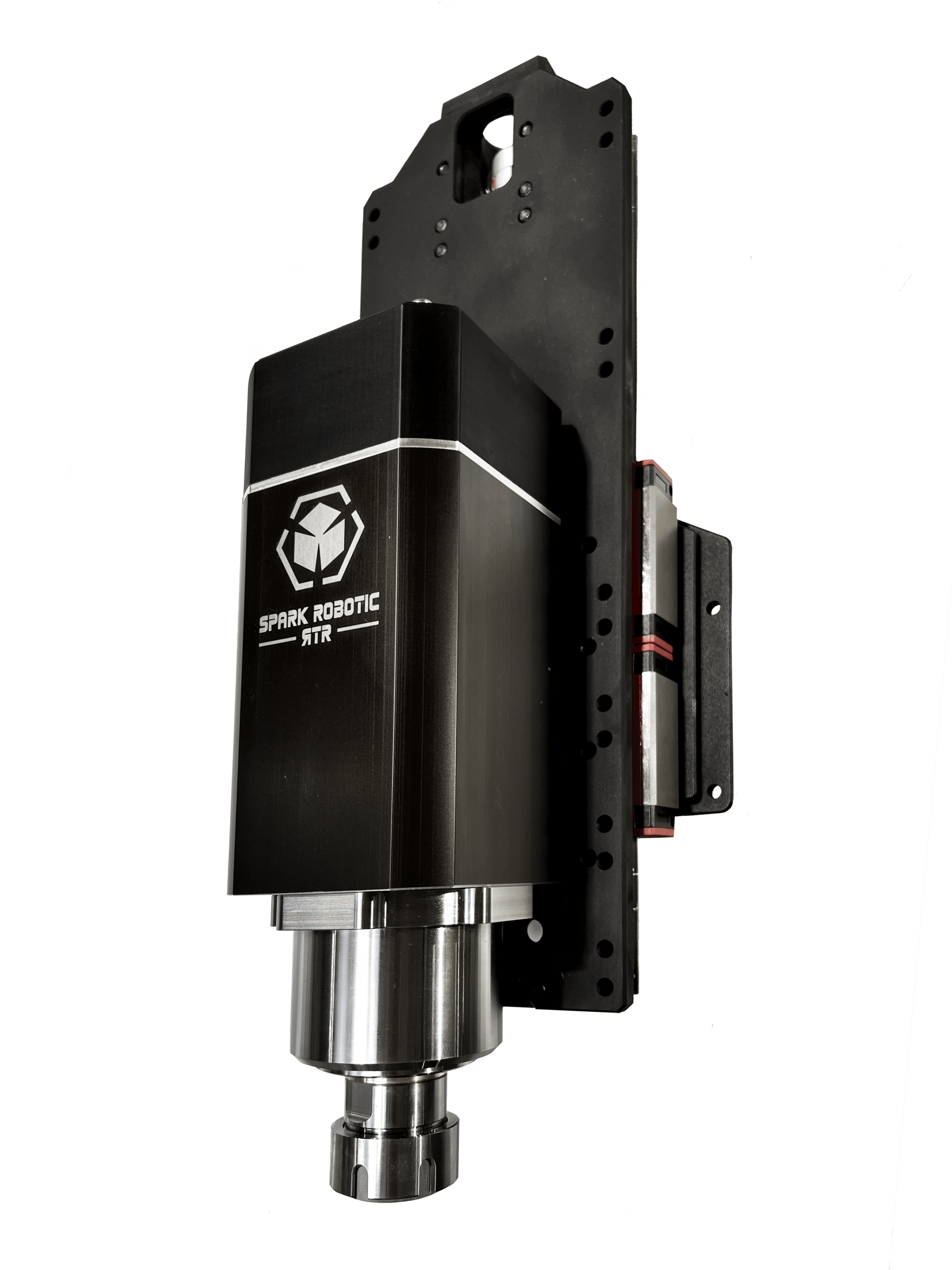

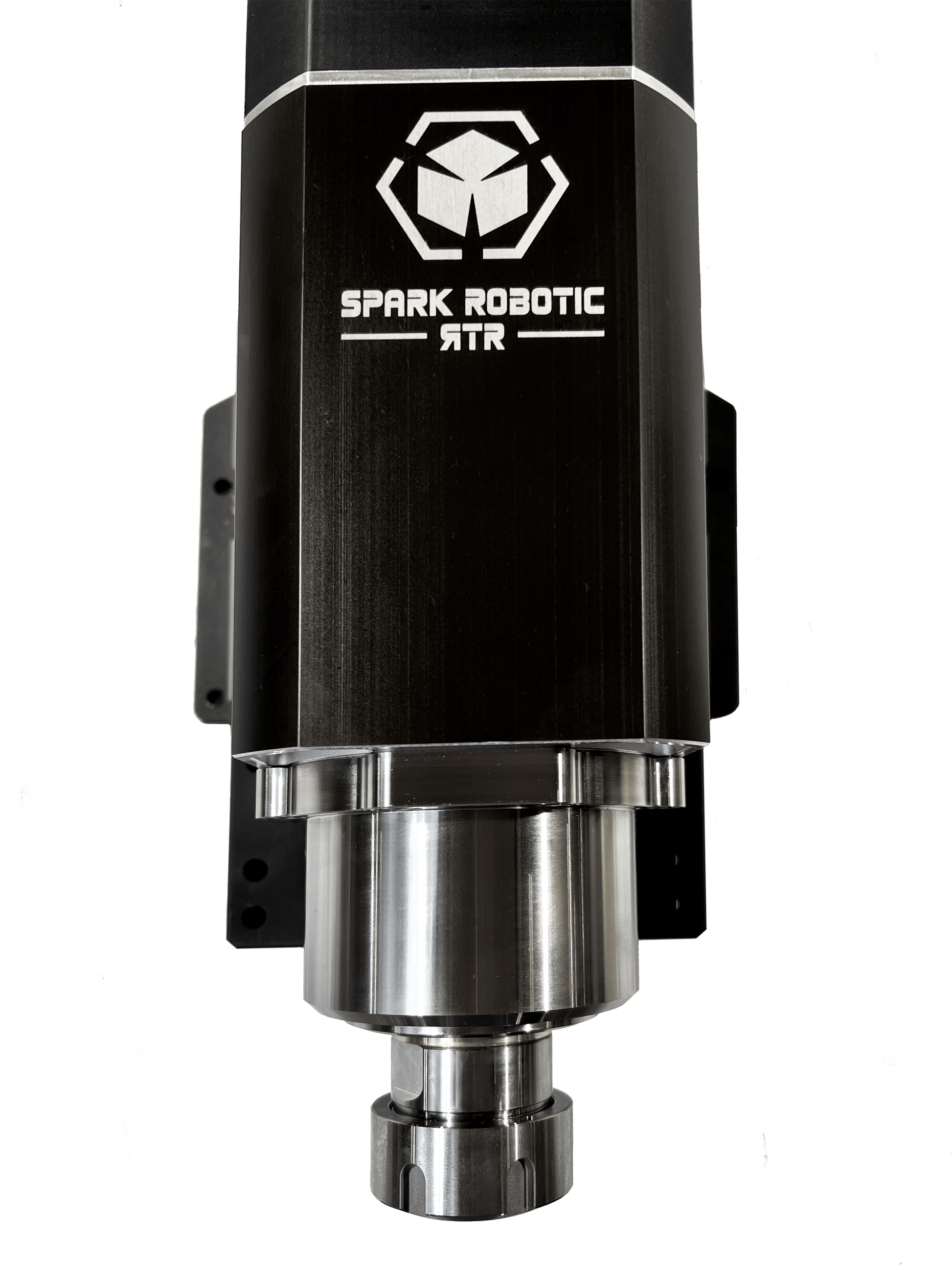

MTC 50 Spindle

We've partnered with CNC Depot to develop this high-performance, American-made spindle, engineered specifically for our CNC router tables. Powered by a robust 5.0 HP induction motor, this spindle combines compact, lightweight design with exceptional precision and durability. Equipped with a large ER32 collet and oversized ABEC-7 dual angular contact bearings, it ensures unmatched stability, consistent performance, and long operational life.

Key Features:

• Powerful 5.0 HP 220V Induction Motor
• 13.5 Amp Motor
• Max Speed: 24,000 RPM (400 Hz)

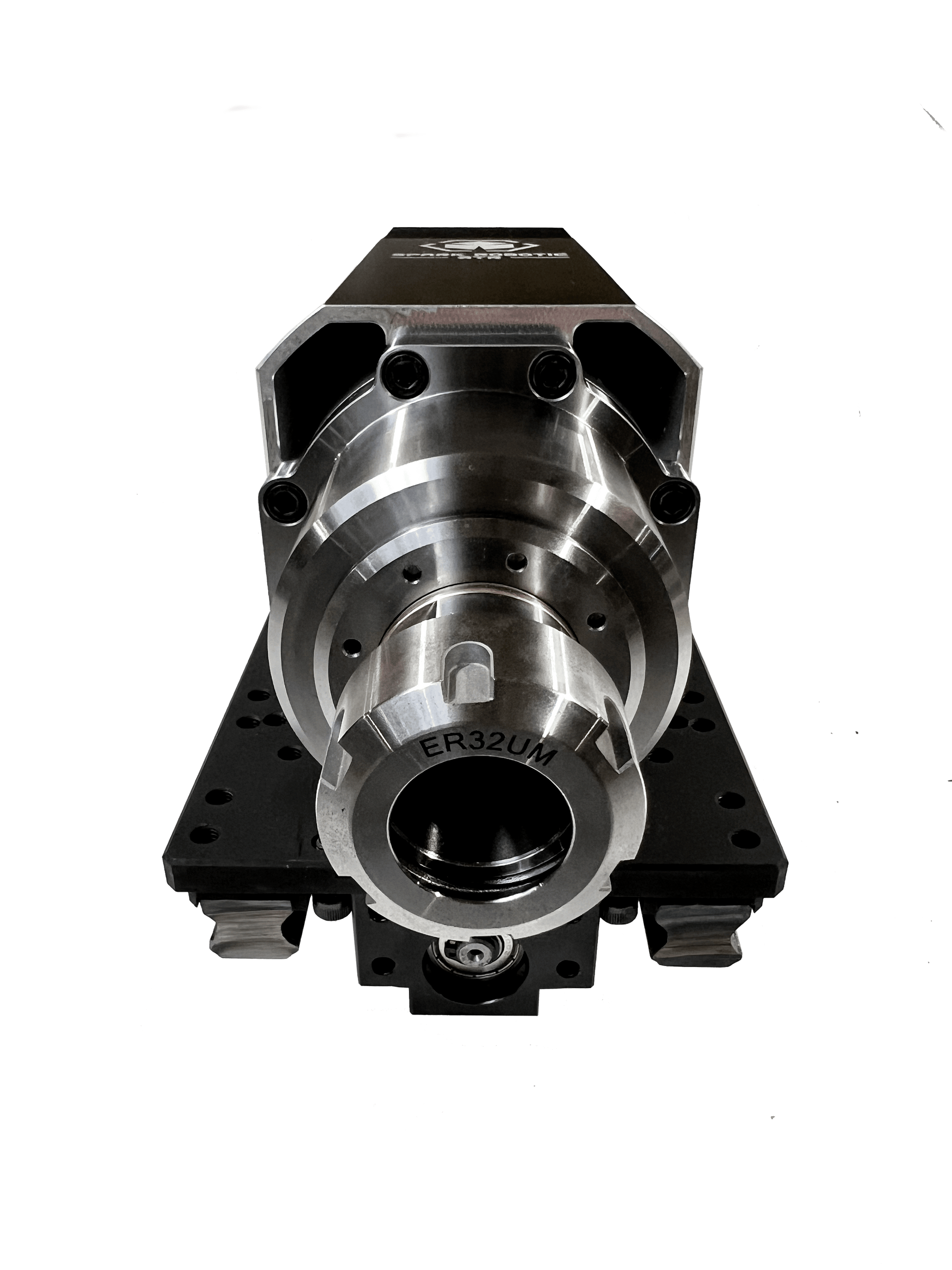

• Large ER32 Collet for Versatile Tooling Options
• Oversized P4+ Dual Angular Contact Bearings for superior stability
• Lifetime-Sealed, Maintenance-Free Bearings
• GMN Brand Quality

This spindle is designed to deliver reliability and performance that meet the demands of precision manufacturing.

*Note: Z-axis is sold separately.
