Stepper Motor Driver

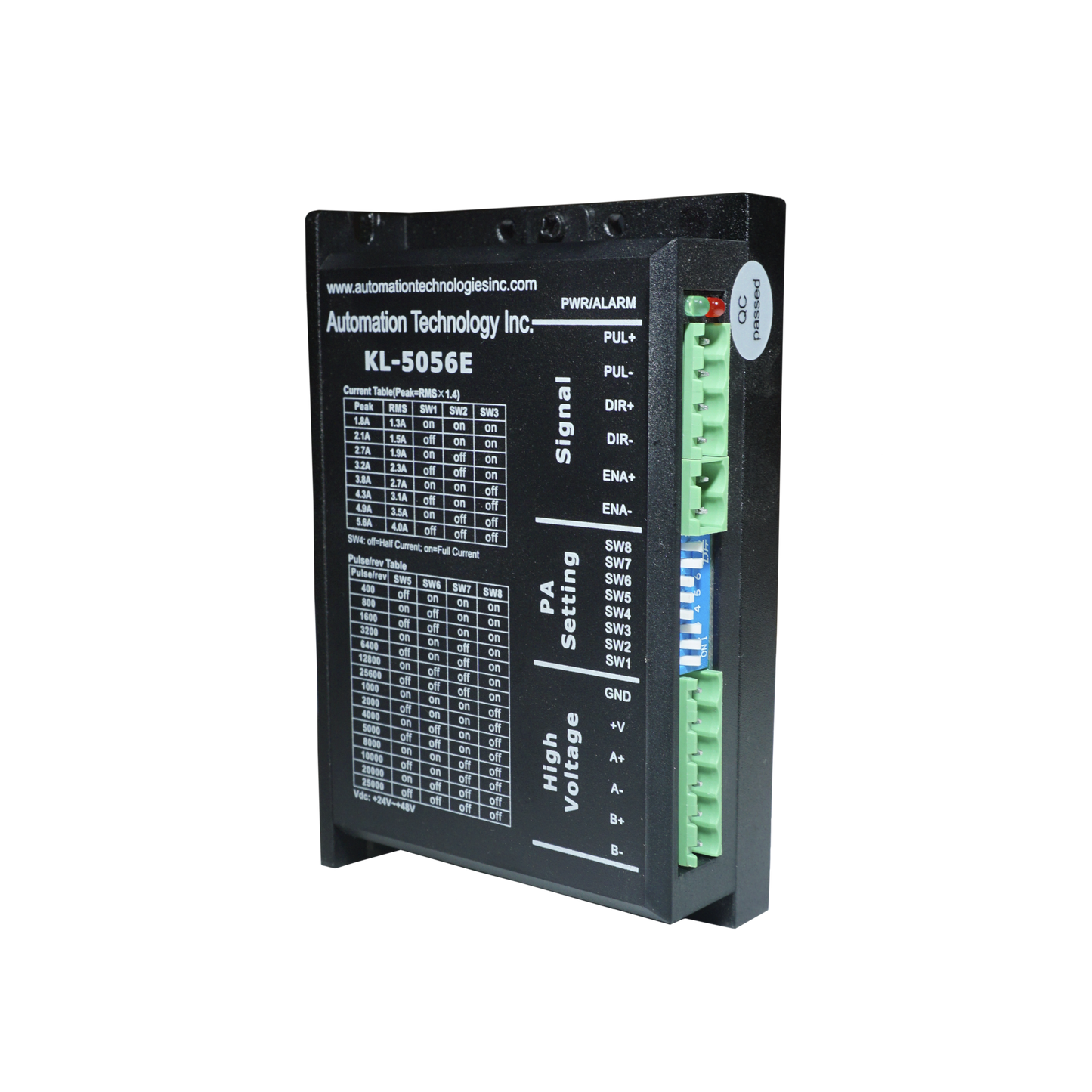

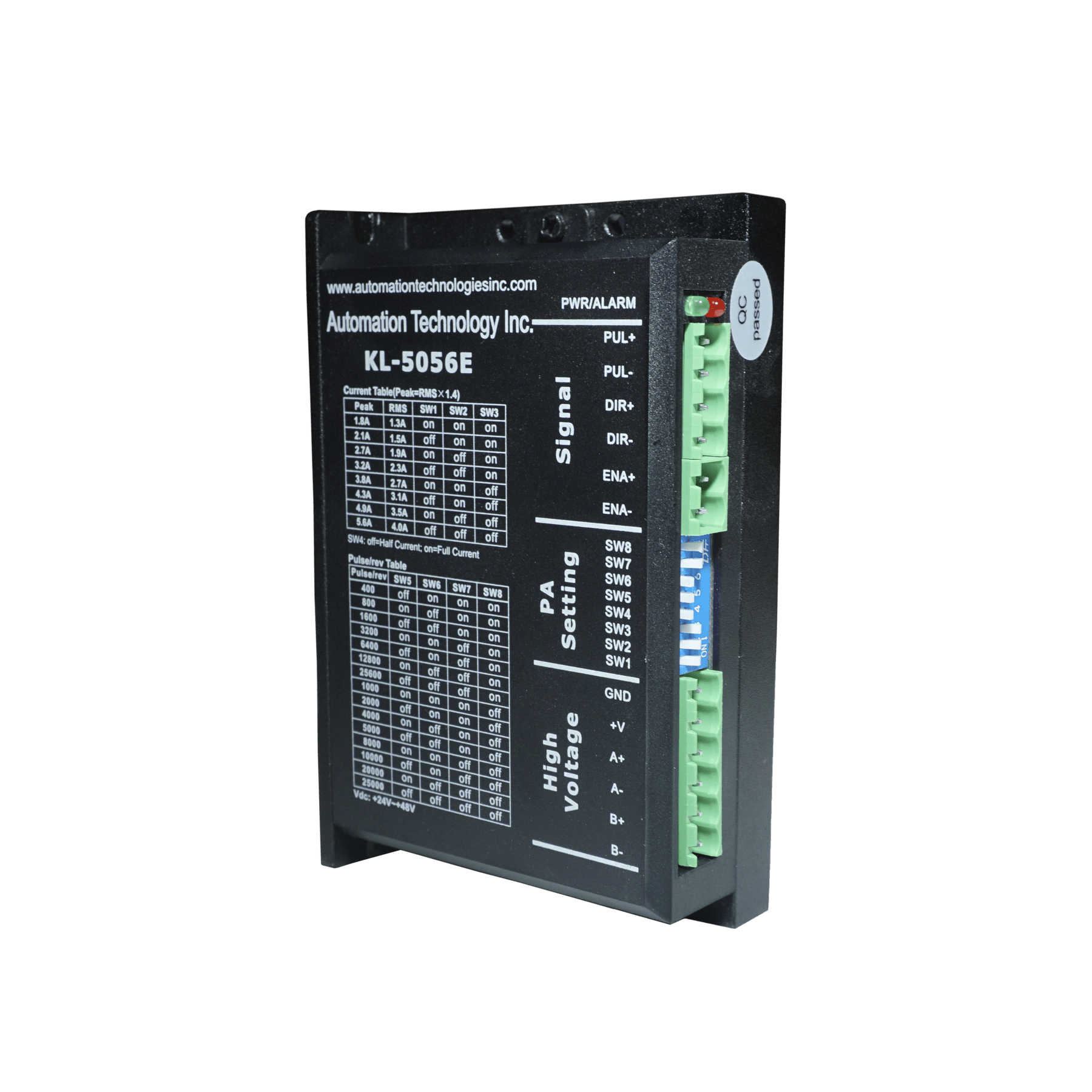

KL-5056E Digital Stepper Driver-32 bit DSP Based

• Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
• Microstep resolutions programmable, from full-step to 51,200 steps/rev
• Can be set by Dip switch (2,4,8,16,32,64,128,256,5,10,25,50,125,250)
• Supply voltage up to +50 VDC
• Output current programmable, from 0.5A to 5.6A(Can be set by Dip switch too)
• Pulse input frequency up to 400 KHz
• TTL compatible and optically isolated input
• Full or Half Current , Sw4: Off= Half Current
• Suitable for 2-phase and 4-phase motors
• Support PUL/DIR and CW/CCW modes
• Over-voltage, Over-current, phase-error protection
